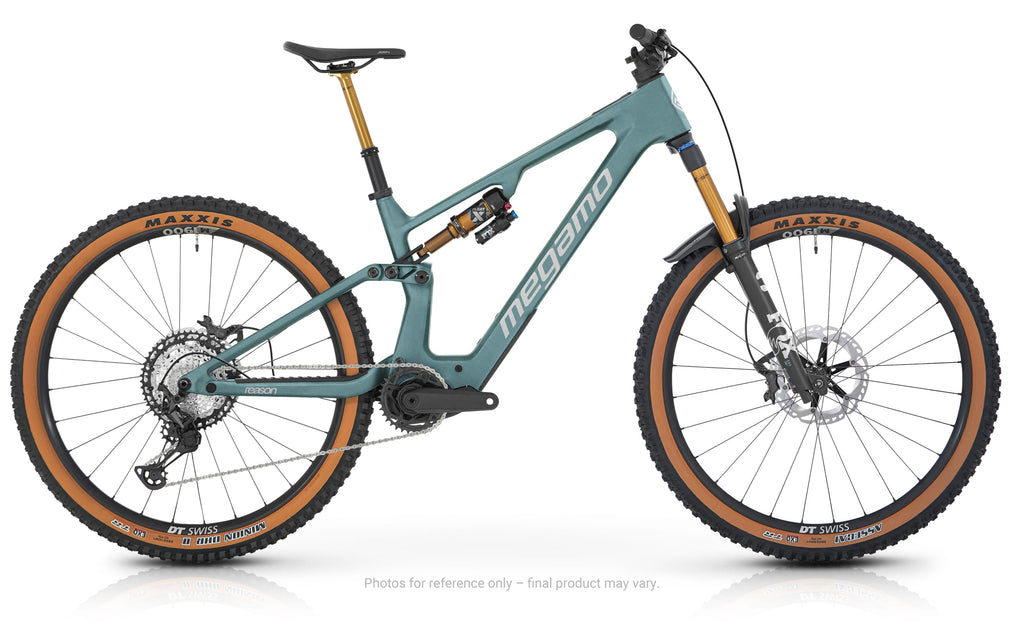

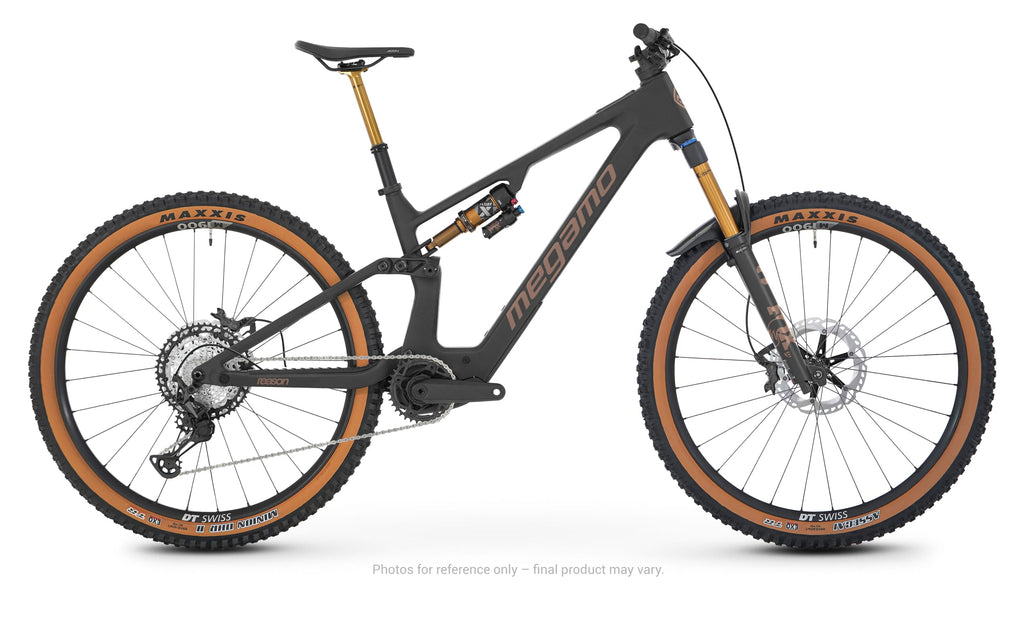

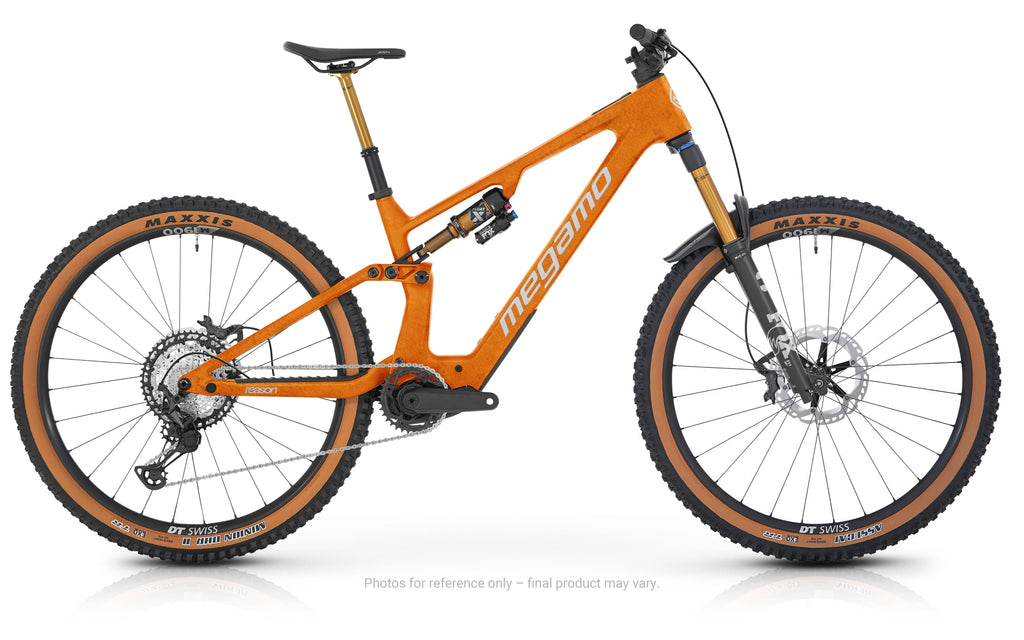

The REASON is redefining the e-bike category with a high-performance frame that´s both lightweight and engineered with unbeatable kinematics. It absorbs vibrations without sacrificing responsiveness and delivers agility, control and precision at all times. Its sleek, integrated design looks just like a muscular bike - no one would guess it's electric, not even up close.
Modify the head tube and rear triangle angles to suit your riding style or terrain type.
One frame, four possible configurations.
Maximum versatility for riders who want it all.
Frame: Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
Fork: Fox 38 Factory Kashima, Float, 29in, 160mm, Grip X2, Rake: 44mm
Shock: Fox FLOAT X, Factory Series, Kashima 2pos-adj, Evol LV, 210x55
Headset: Acros AZX-589 ZS56 blocklock 150º
Motor: Avinox M2S -150Nm 1300W (Boost mode) / 130Nm 1300W
Battery: DJI Avinox 800 Wh, 35,9V, IP56
Display: DJI Avinox DP100, pantalla táctil OLED a todo color de 2 pulgadas, 800nits, 326ppi
Rear Derailleur: SRAM 90 EAGLE T-TYPE, 12-Speed
Shifters: SRAM 90 EAGLE T-TYPE
Crankset: SRAM EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 165mm
Cassette: SRAM XS 1270 T-TYPE, 10-52T
Brakes: Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm
Tyres: Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
Wheels: DT Swiss H 1900 SPLINE, 30mm Tubeless ready Aluminium rim, 370 Ratchet LN 18
Handlebar: Carbon Race Face ERA 35x800, Rise 20mm
Stem: Satori Ursa 35mm
Seatpost: Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 175 mm Drop
Seat: Fizik Terra Aidon X5
